Electrical panels
From theory to real wiring. Assemble, install and protect electrical panels without using up a single component.
Domestic, industrial or photovoltaic: your students identify each part, put it in its place and wire the complete panel, applying safety regulations as if they were in a real workshop.
Master the installation and assembly of electrical panels
The simulator accompanies vocational students from the first component to the finished panel, with an editor to design custom assemblies and practise as many configurations as the teacher proposes.
- They recognise before they assemble: they identify and locate each component in domestic, industrial and photovoltaic environments.
- They install from start to finish: circuit breakers, residual current device and complete wiring, step by step.
- They work with a safety mindset: PPE and correct procedures built into every task.
Simulator activities
› Identification of the key components.
› Installation of an electrical panel from scratch.
› Assembly of electrical panels for a range of applications.
› Access to an editor to design custom electrical panels.
› Fitting the power control switch.
› Installation of the main circuit breaker and residual current device.
› Connection of miniature circuit breakers.

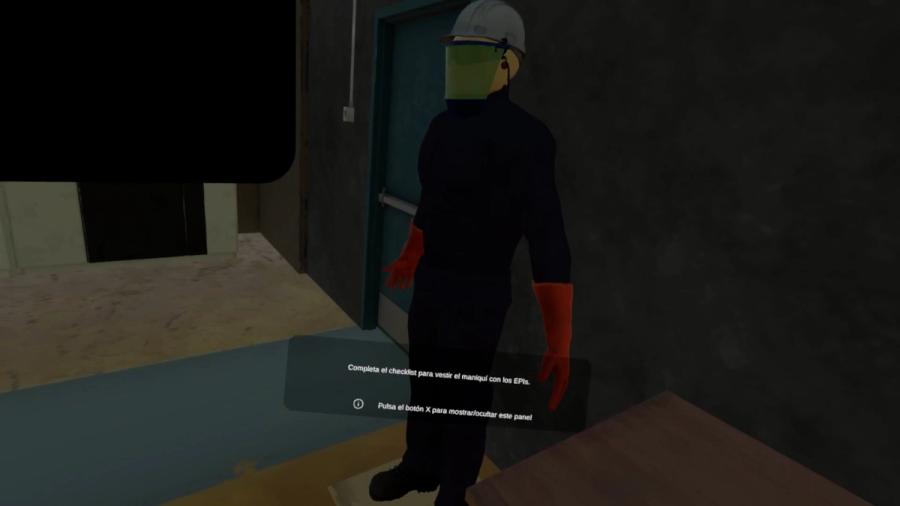

› Training in the correct use of PPE.

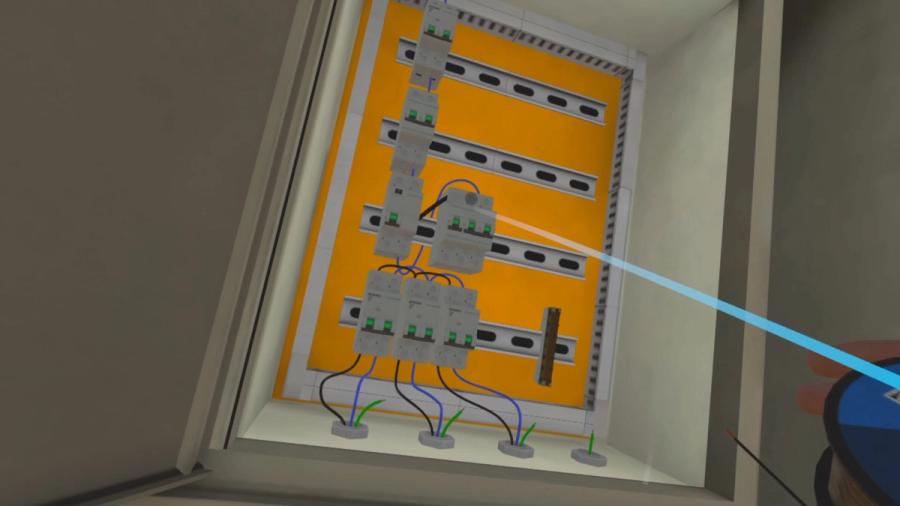

› Wiring of the electrical panel components.
› Integration of surge protectors.
